Product Uses
Emergency stabilization on OPGW and overhead ground wires
Rapid response after storms, icing, or external damage
Temporary reinforcement before a scheduled permanent repair
Spans with limited vehicle access or high exposure risk
Quick stabilization when time is tight and conditions are complex
Product Advantage
| Fast access to the problem span | Temporary stabilization while energized. | Risk containment. |
| Flies to the span, lands on the wire, then travels along it. | Supports live-line response when outage windows are limited. | Helps stabilize damaged strands and prevent further deterioration while the line stays in service. |
| Works where ground access is hard. | Reduces crew exposure. | Clear workflow. |
| Long spans, difficult terrain, and limited access routes. | Less manual approach to high-risk locations. | Reach the defect, stabilize, then plan the permanent repair. |
Technical Parameters
System / Common | Comms | video link + DTU transparent transmission | |
| Applicable ground wire | 50–240 mm² | Protection | IP55 |
| Power | 36 V lithium battery / 36V | Battery | 10 Ah |
| Endurance | 4 h（2KM） | Voltage corridor | 110–500 kV |

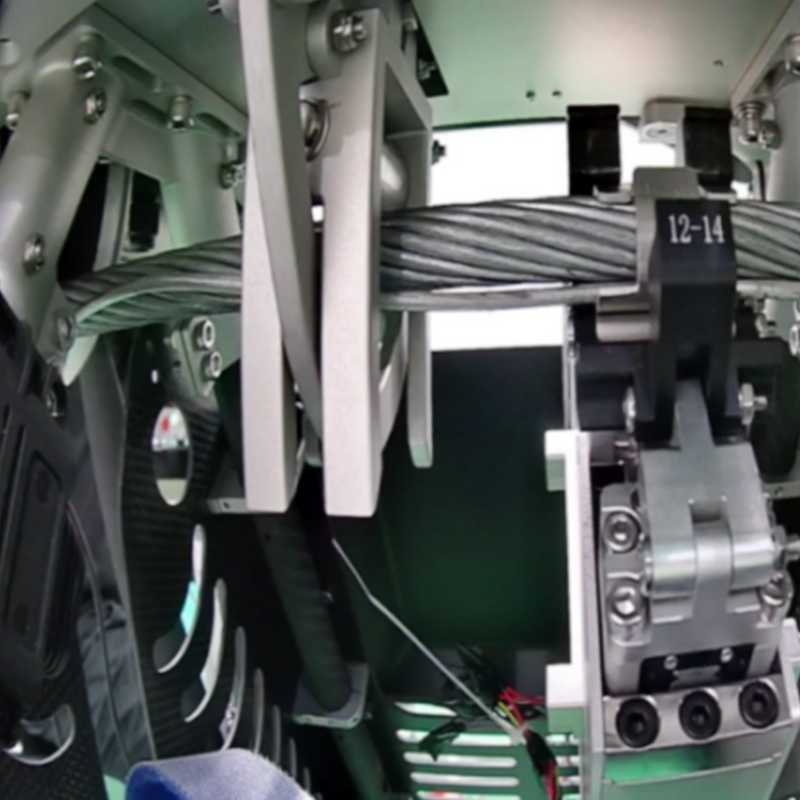

Strand-Alignment Robot | Travel speed | avg 0.5 m/s; max 1 m/s | |
| Dimensions (excl. packing) | 587 × 389 × 480 mm | Avg. operation time | 10 min (reference for 2 m broken strand) / 10 min |
| Weight | 20 kg | Climb ability | 30° |

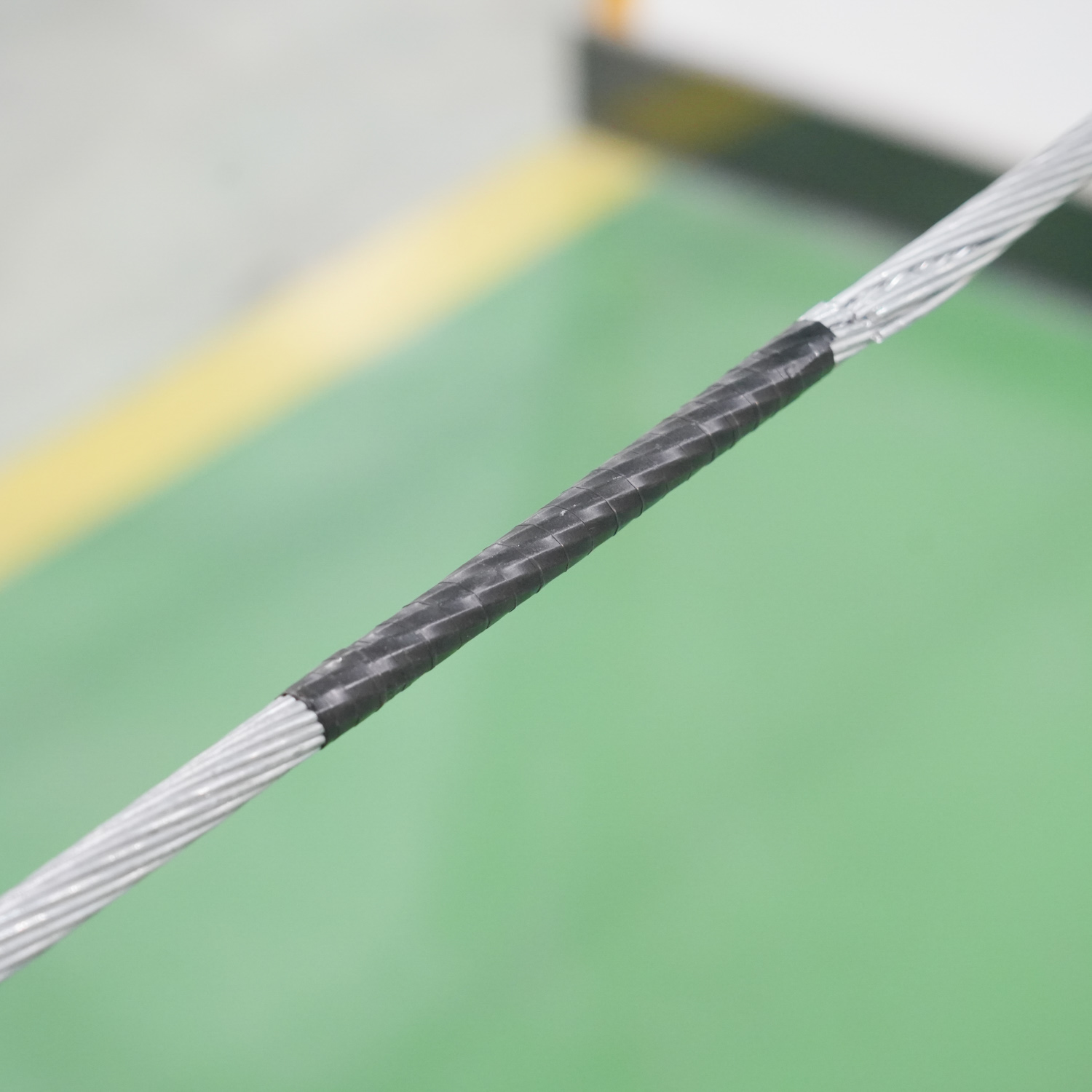

Splice-Sleeve Wrapping Robot | Climb ability | 30° | |
| Dimensions (excl. packing) | 587 × 389 × 480 mm | Travel speed | avg 0.5 m/s; max 1 m/s |
| Weight | 36 kg | Avg. operation time | 15 min |
